14-pin circular magnetic Charging Cable for medical equipment
Application:
Integrated power & signal magnetic cable, with USB-B & RJ45 & DC5.5 female jack widely used in medical equipment, automation devices, vehicle-mounted systems and mobile device charging.
Cable1: (26AWG*4P)+22AWG*1P+(26AWG*1P+24AWG*2C)+F+AB Jacket OD8.3mm Black , flexible and durable
Standard Length: Customizable

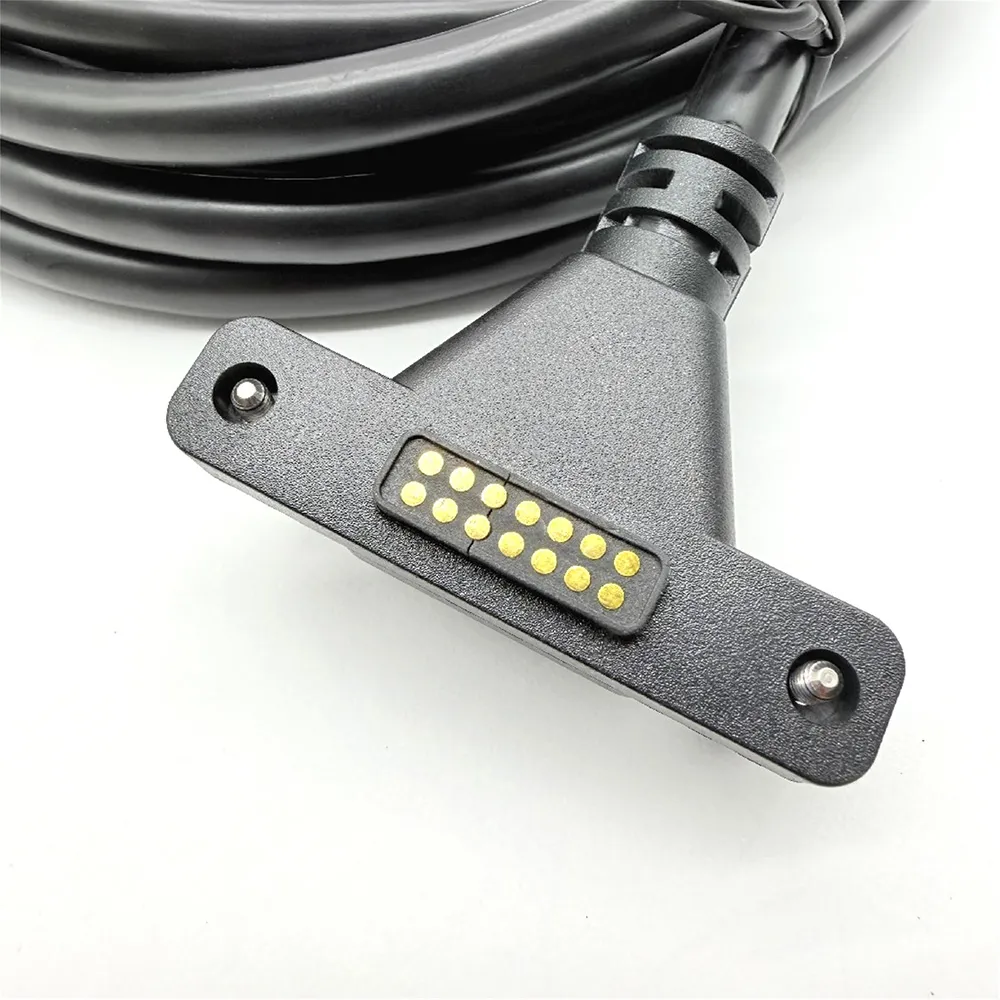

Connector 1 : 14Pin Magnetic connector
Details:
Contact Material: Brass with gold plating (Au over Ni plating)
Housing Material: Medical-grade PVC(black)
Installation Style: Precision-fit mounting design

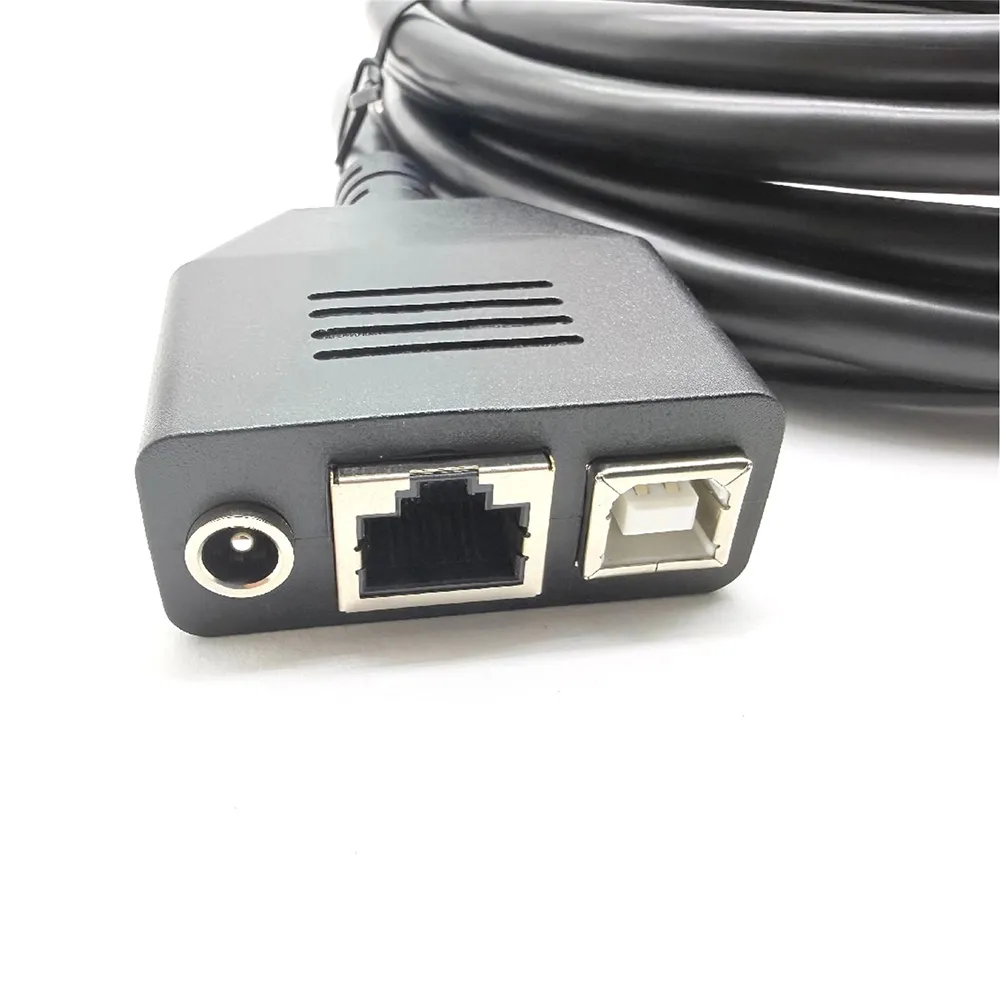

Connector 2 : USB-B female port
Connector 3 : RJ45 female jack
Connector 4 : DC5.5 female jack
Key Features & Compliance:
Rated Voltage: 12V DC
Rated Current: 3.0A
Contact Resistance: ≤5mΩ (Max)
USB2.0 480mbps
Ethernet speed: 1000 Mbps (Gigabit Ethernet)
Services:
Customizable packaging: bulk / individual / blister pack available upon request
100% full inspection before shipment
Flexible MOQ & short lead time
OEM & ODM services welcome
